What does this device do?

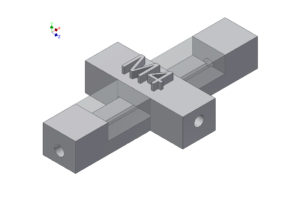

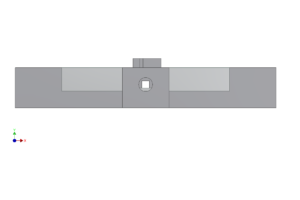

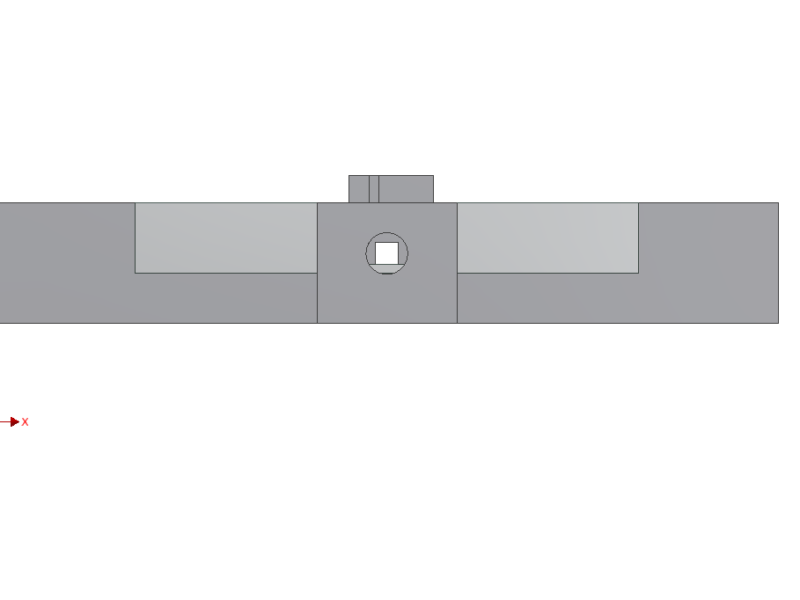

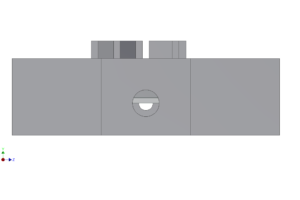

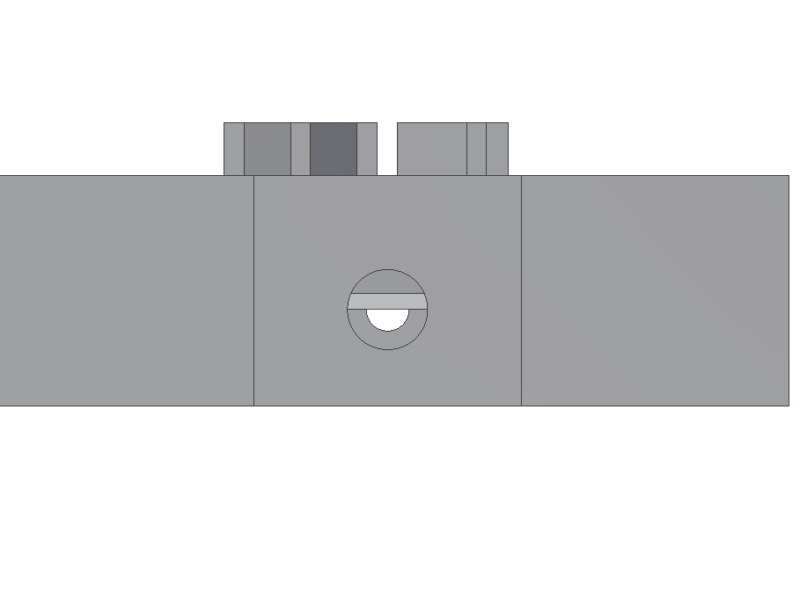

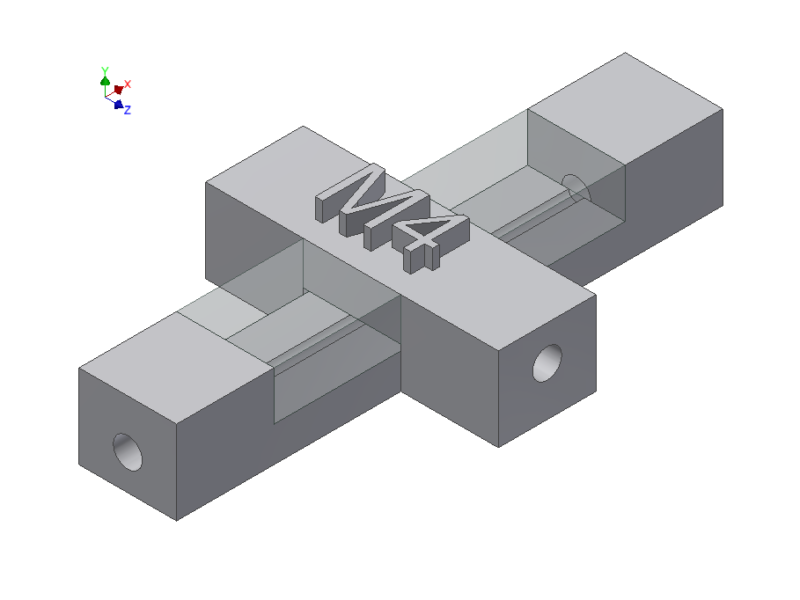

A simple 3D printable proportional valve. Multi-material based, this valve allows for a combination of flexible and stiff materials to provide a control-able valve while maintaining device structural integrity elsewhere. Increase membrane thickness to tune flow rate at a given control pressure. PolyJet, multi-material, or binder jetting 3D printing methods are recommended to create in a single print. Dimensions: 28 x 5 x 5.3 mm. 800 µm fluid channel, 800 µm control channel, 300 µm membraneKeywords:
Material:
Fabrication Technology:
Hardware:
Publications: |
|---|
