What does this device do?

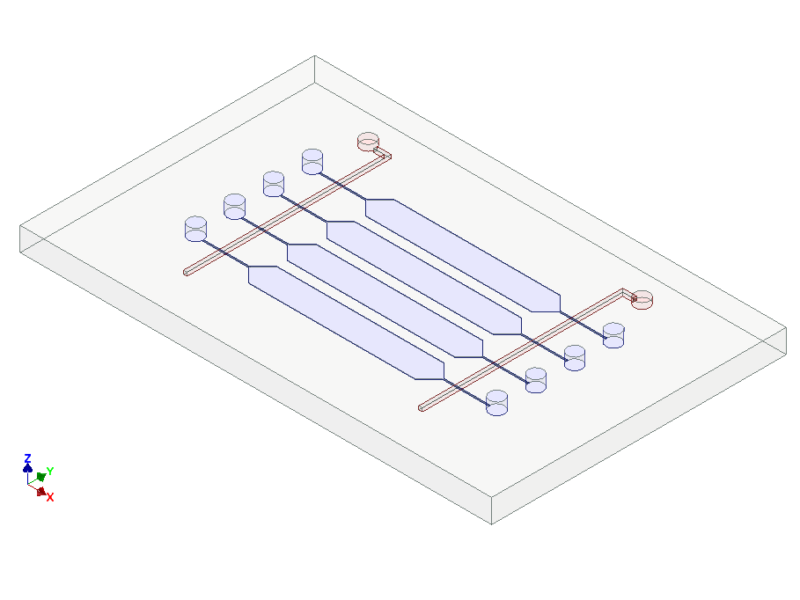

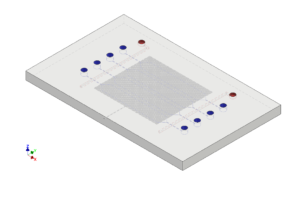

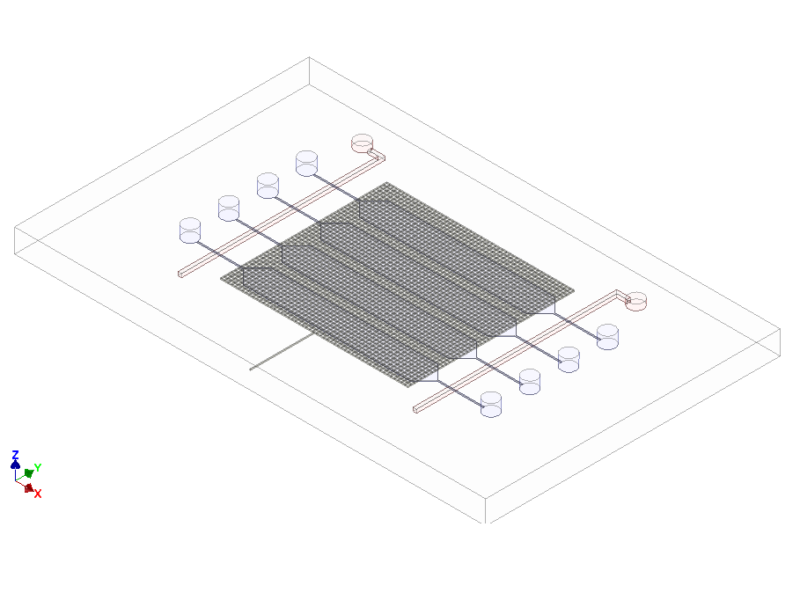

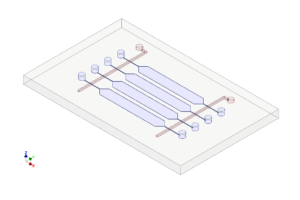

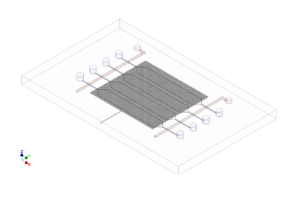

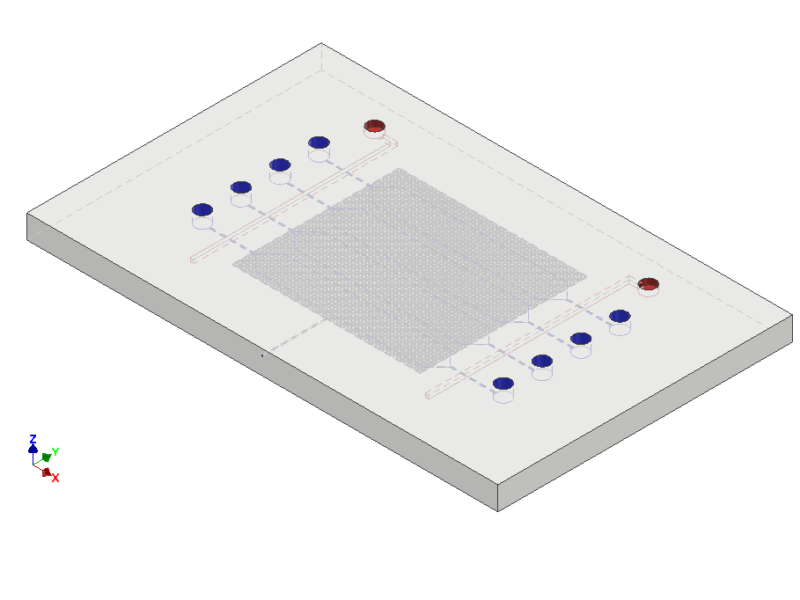

Replication of a four chamber microfluidic chip for synthesizing DNA. Chambers have a water cooling jacket and a control layer to cool the reaction volume. Fabrication by PDMS casting over stereo lithography etched master molds (flow layer and control layer)
Overall dimensions: 40 x 25 x 2 mm, 100 µm wide flow input channels, 300 µm wide control channels.
