SnakePath

by Ennisyui

Last updated on September 27, 2018 at 6:50 am

Part Data

Downloads Available

You must be logged in to download device files.

What does this device do?

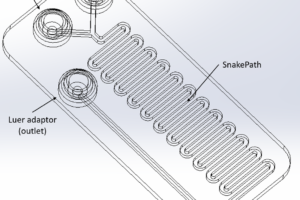

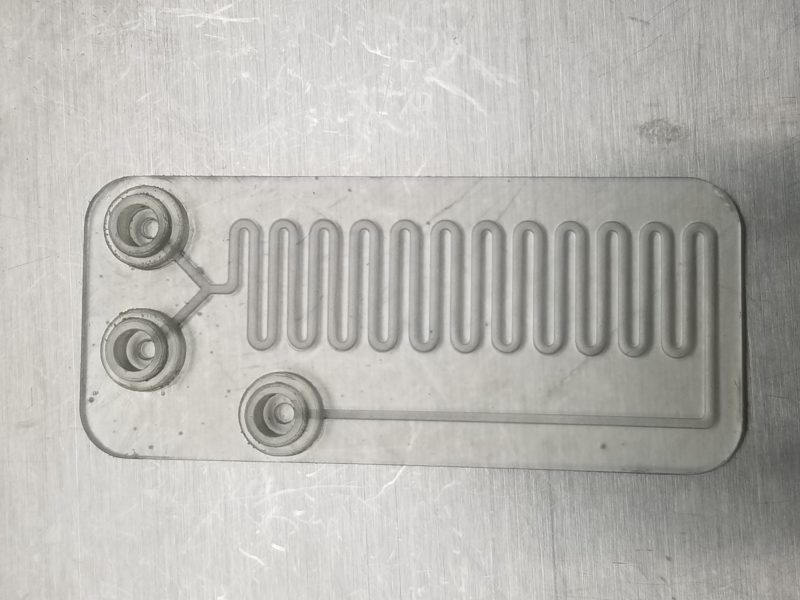

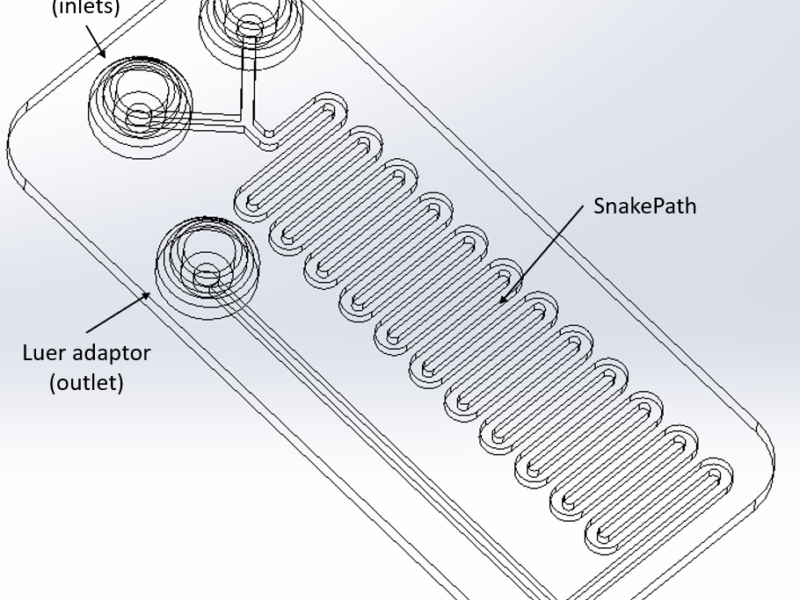

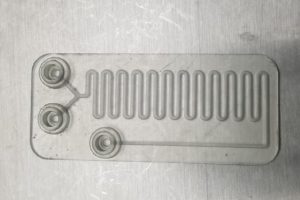

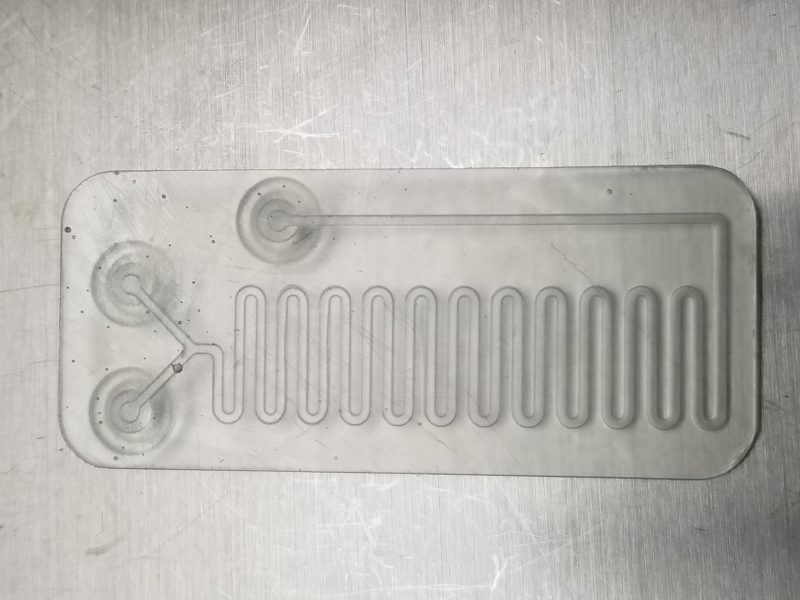

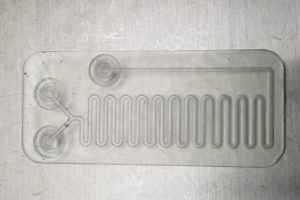

The SnakePath micromixer chip features a serpentine channel (1mm wide) for liquid mixing and 3x Luer syringe adaptors that allows easy input/output of samples.

Keywords:

microfluidics
Mixer

Material:

SLA resin

Fabrication Technology:

3D printing
SLA 3D Printing

Hardware:

1ml syringe

License:

Attribution: CC BY

asanka1985 says:

January 6, 2020 at 11:21 pm

Hi,
It will be really useful if you can upload the CAD file with dimensions. Thank you.

Log in to Reply
1. jtjan says:

  August 6, 2020 at 2:55 pm

  There is a STL file attached to the post.
